Hot melt adhesive compounding machine

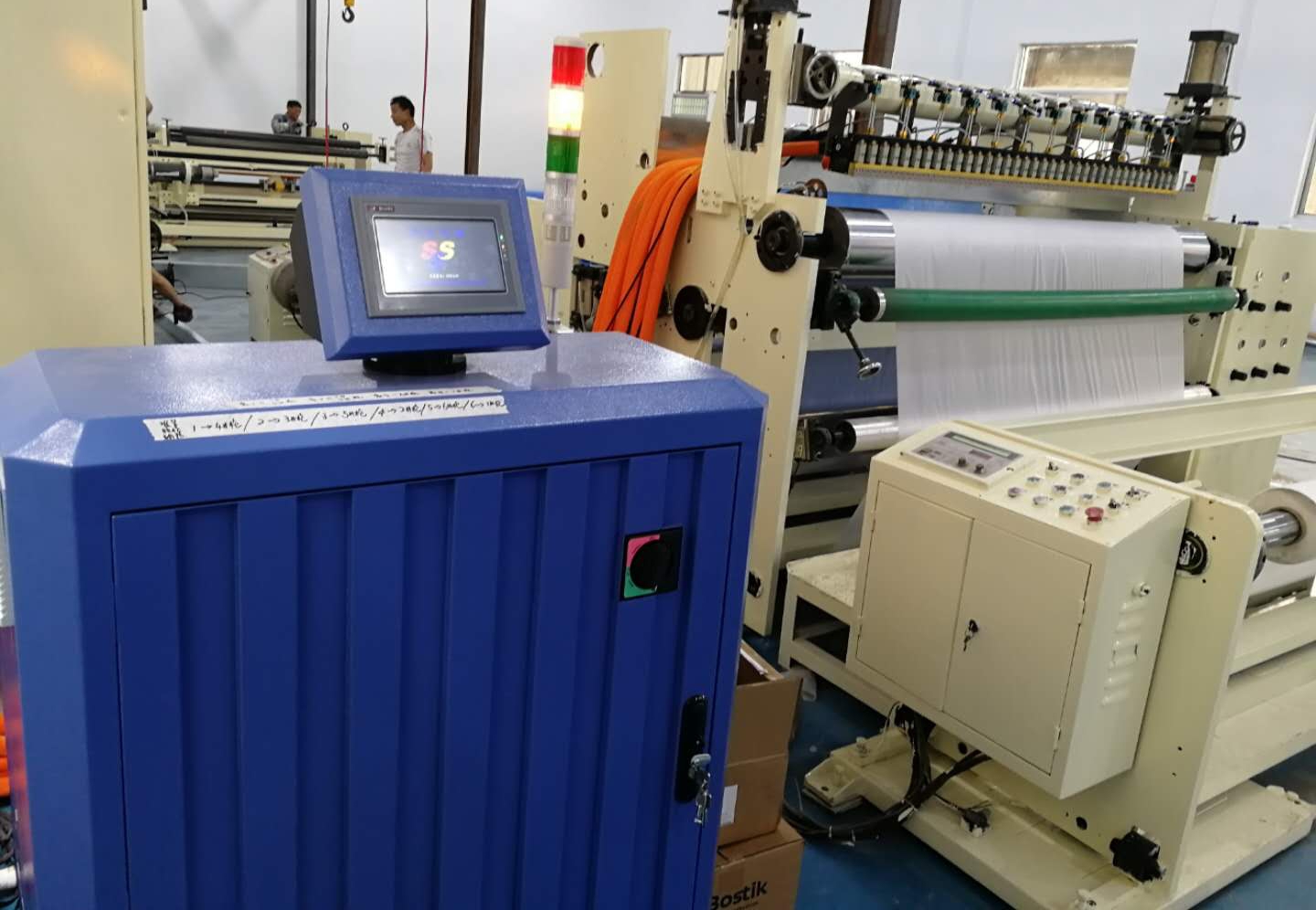

The hot-melt laminating machine uses heat radiation to heat-melt plastic, sheet, cloth, etc., combines two or more
different materials and applies a certain amount Pressure makes it compound into one processing machine.
The water glue compound machine is mainly suitable for industries such as shoes and hats, home textiles, luggage,
car interiors, carpets and so on. It is mainly used to transfer PU glue to the cloth surface in the form of dots. It has the advantages of good fastness, washing resistance, flexibility, strong air permeability and no deformation.
Main features
The coating head is made of high-speed tool steel, which has the characteristics of wear resistance, high temperature resistance, and deformation resistance; equipped with a local glue flow adjustment valve, which can adjust the glue amount with high precision.It also has opening and closing functions, which can reduce waste during shutdown (no glue leakage); it is equipped with a filter device for effective filtration.
Device model
600
1200
1800
2400
Product width (mm)
500
1100
1700
2300
Product thickness (mm)
0.005¡ª0.02
0.008¡ª0.03
0.01¡ª0.04
0.01¡ª0.05
Maximum linear speed m/min
30¡ª80m
60¡ª120m
60-160m
60¡ª200m
