High-speed extrusion coating compound production line (paper cup release paper)
Features:

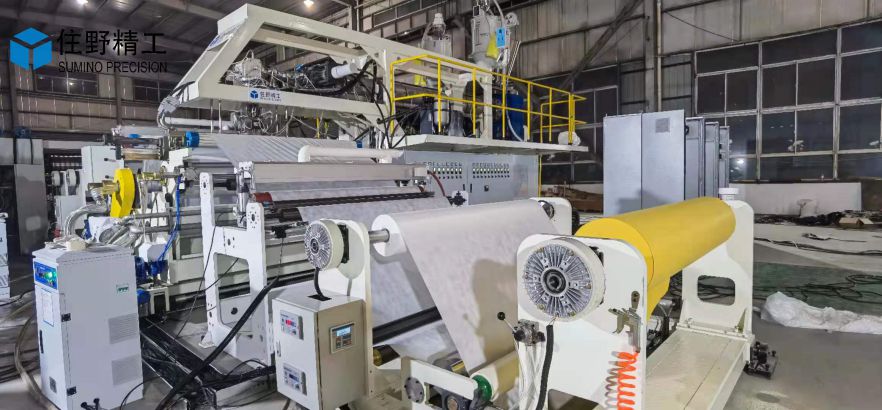

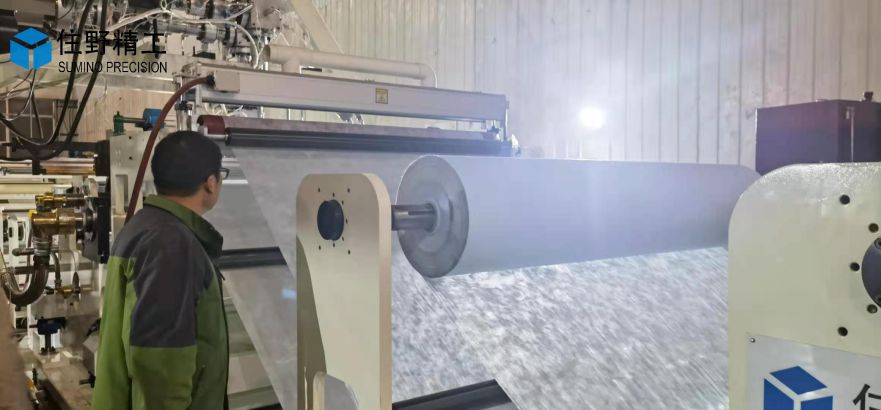

¡ñThe unit is composed of plastic extruder, die head, main unwinding, compound machine, secondary unwinding, air knife trimming device, automatic unwinding machine and other configurations.
¡ñThe unit is equipped with friction rewinding, double-station reversing automatic rewinding, pre-winding device and single and double-sided composite models are available for selection.
¡ñIt can change rolls without stopping the machine, continuous production for 24 hours, and the compounding speed can reach 50-110 m/min, realizing low loss and high efficiency.
¡ñThe series of products use paper, film, woven cloth or aluminum foil as the base material, which is compounded into two, three or more layers of new materials at one time by casting
¡ñProducts are widely used in cement chemical products, feed, food, medicine, plastic-coated paper cups and other packaging products.
Main Technical Parameter
|
Model |
SJ-70-1000 |
SJ-85-1350 |
SJ-90-1650 |
SJ-100-2200 |
|
Product width |
450-800mm |
600-1200mm |
1100-1500mm |
1500-2000mm |
|
Maximum compounding speed |
50-110m/min |
50-110m/min |
50-110m/min |
50-110m/min |
|
Film thickness |
0.01-0.06mm |
0.01-0.06mm |
0.01-0.06mm |
0.01-0.06mm |
|
Screw length to diameter ratio |
28:1 |
28:1 |
28:1 |
28:1 |
|
Maximum diameter of unwinding and unwinding |
1200mm |
1200mm |
1200mm |
1200mm |
|
Dimensions |
12000x6000x3200 |
12500x7000x3200 |
13000x8000x3200 |
12000x9000x3200 |
|
Installed power |
65kw |
75kw |
95kw |
140kw |
|
Applicable substrate |
Paper, aluminum foil, non-woven fabric BOPP BOPET BOPA CPP CPE |
|||
