Plastic sheet extrusion machine

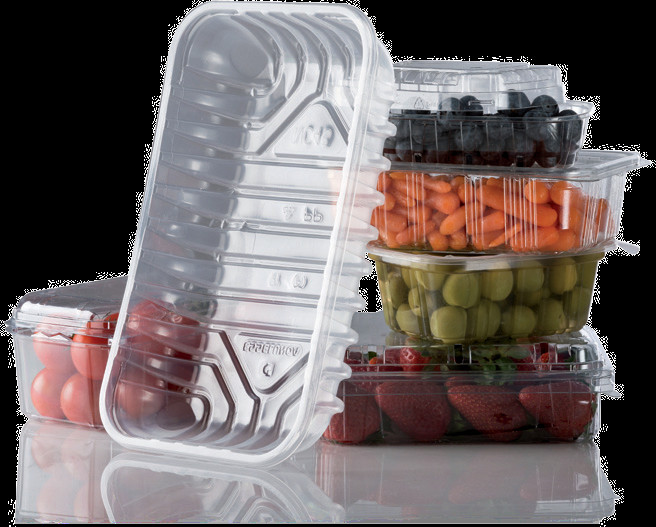

Suitable for processing PLA, PET, PP, PS, ABS and other materials.

◎Applicable to 100% fully recycled pulverized materials, with wide channels and low prices, supporting the environmental protection industry.


Device model

600/1200/Custom

Product width (mm)

500/1100/Custom

Product thickness (mm)

0.1—3mm

Maximum linear speed m/min

6-50m

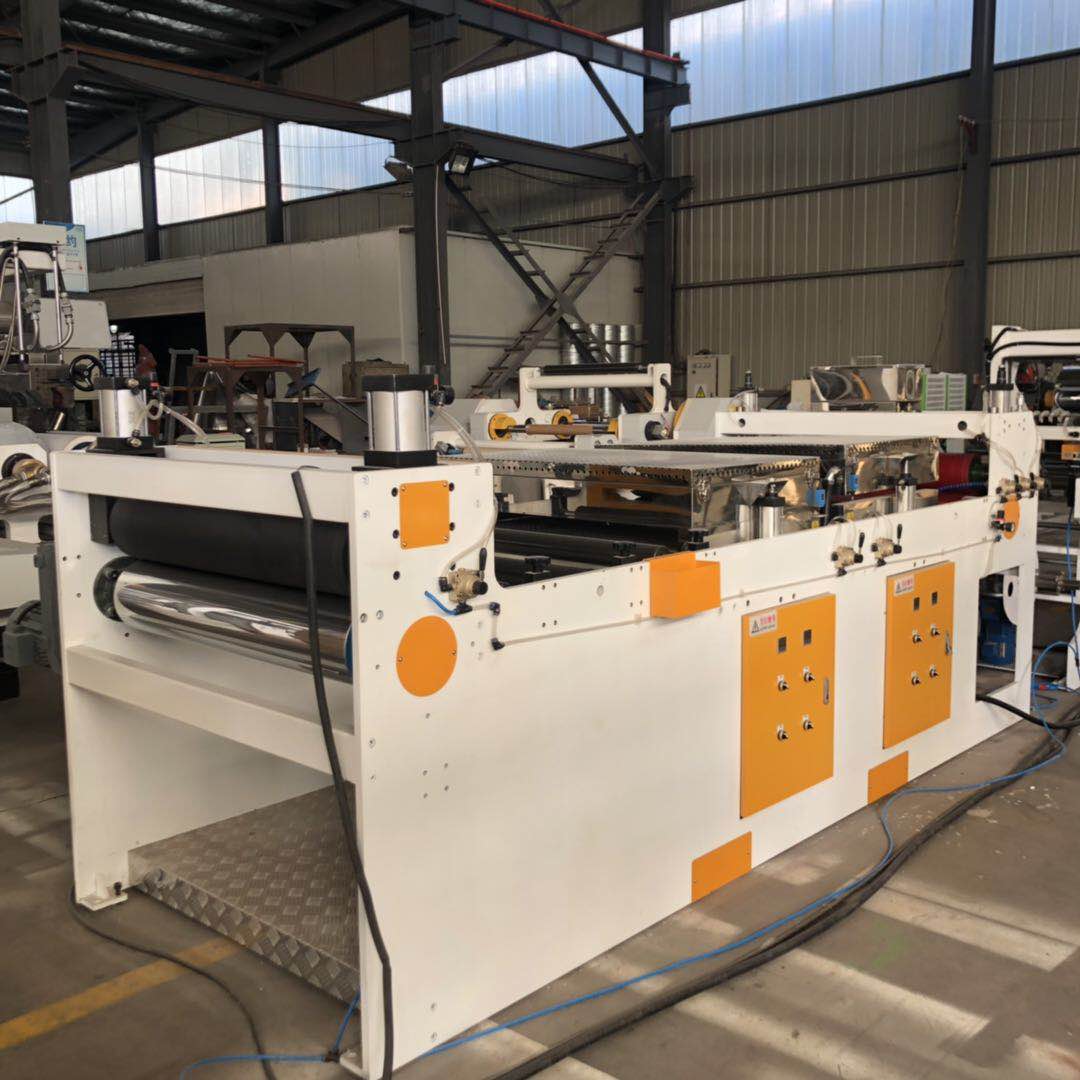

Details of the Plastic sheet extrusion machine

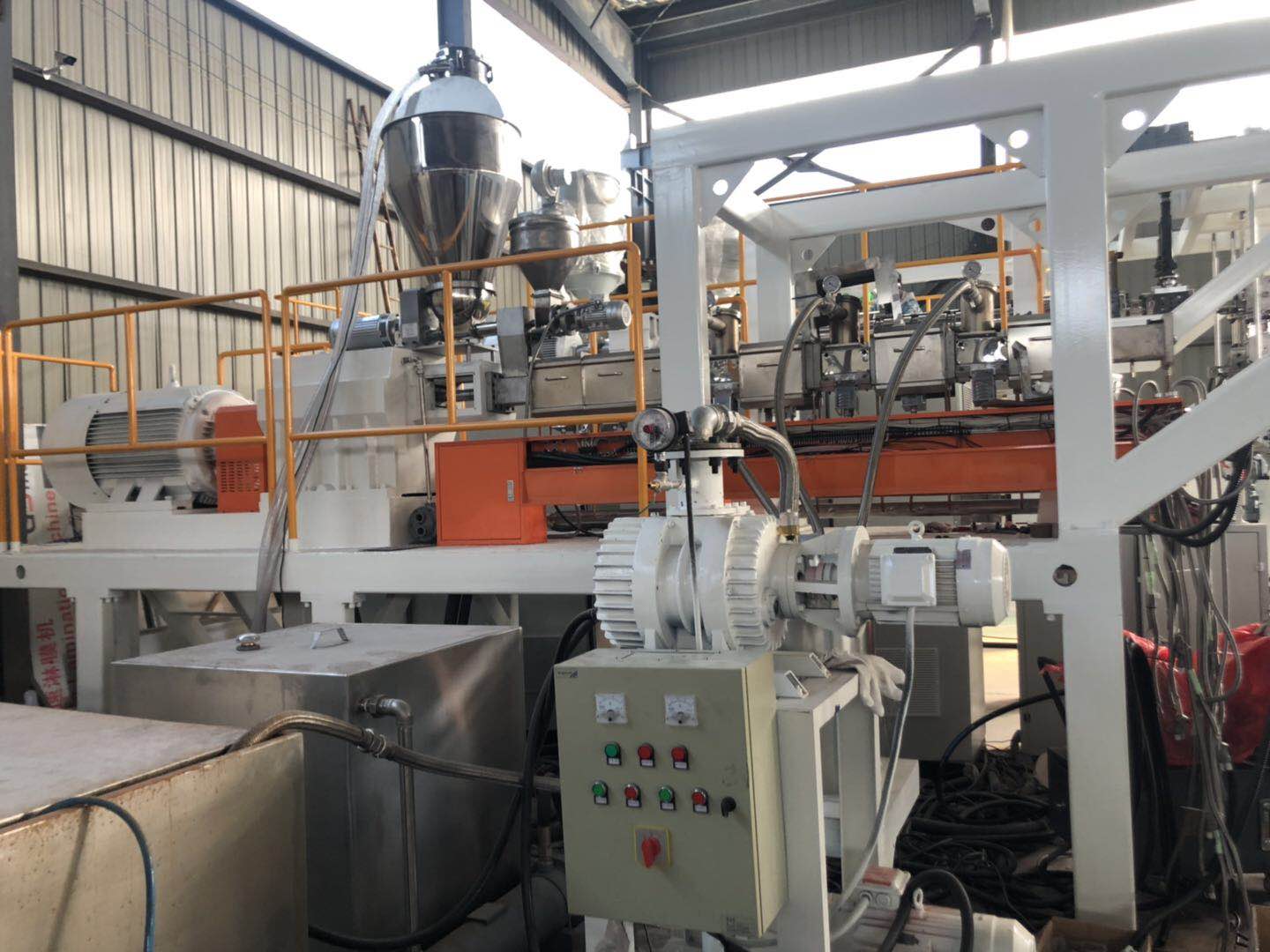

◎The main machine is equipped with a co-rotating parallel twin-screw extruder with multi-stage exhaust and good plasticizing effect.


◎This machine adopts crystal dehumidifying and drying device for the drying of raw materials, which is suitable for the production of 100% fully recycled crushed materials. (All raw material production does not require drying treatment)

◎Large winding diameter (up to 1200mm); the weight of a single roll can reach 1000kg.

◎The output is as high as 550kg/h, and it does not change color, so it is suitable.

◎The whole line adopts man-machine interface display, PLC serial sequence control, and temperature module management and operation are more convenient.

◎This machine is equipped with a lateral precision feeding device, which can produce sheets of different colors.

◎The screen changer adopts a long-term candle filter, and the screen change time can be extended by 50-100 hours.
