PP Hollow Building Formwork Production Line

For Building Material , PP Hollow Construction Formwork Machine


Application:

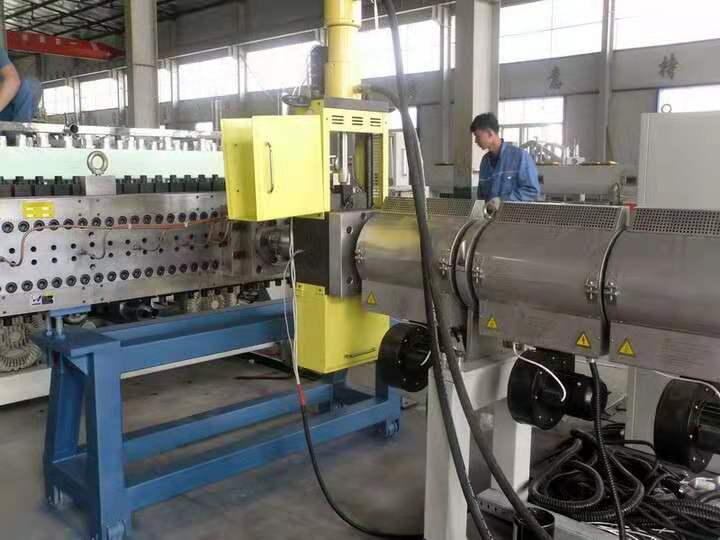

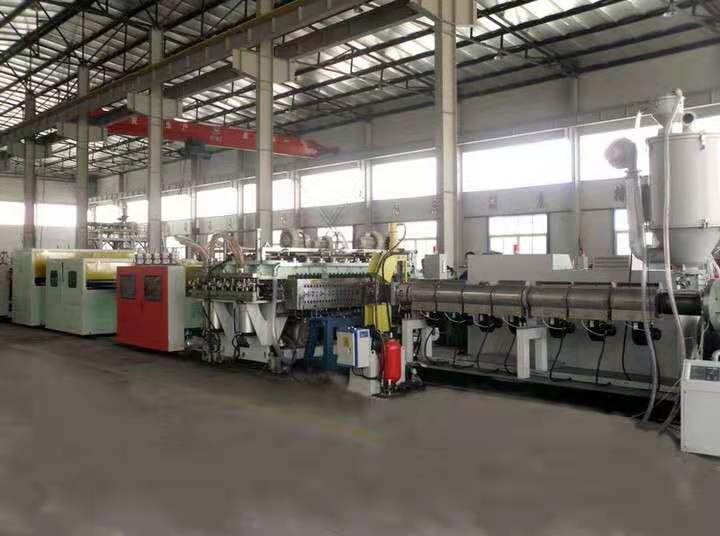

This unit has a single screw extruder consisting of hydraulic screen changer, mold, primary traction machine, annealing furnace, cooling section, secondary traction machine, cross cutting machine and conveyor. In the industry, the initial O-shaped hollow structure was changed to the m-shaped, V-shaped, N-shaped, and well-shaped type, and finally changed to a grid type. The grid-shaped structure is accepted by the market in terms of material usage and structural properties. The surface of the produced product is smooth and has small dimensional error, and has many advantages such as nailing, planing, corrosion resistance and flame retardancy.


PP Hollow Formwork Standard Size (Customizable)
Thickness(mm)
Width*Length(mm)
Weight(kg)
15
915*1830
14-15
16
915*1830
15-16
17
915*1830
16-17
18
915*1830
17-18
15
1220*2440
24-25
16
1220*2440
26-27
17
1220*2440
27-28
18
1220*2440
29-30



FAQ

Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
