PP PC PE corrugated sheet extrusion line

About PP PC PE corrugated sheet extrusion line:

Thickness 2-14mm, Width 1220-2600mm.

PP PC PE corrugated sheet extrusion line includes:

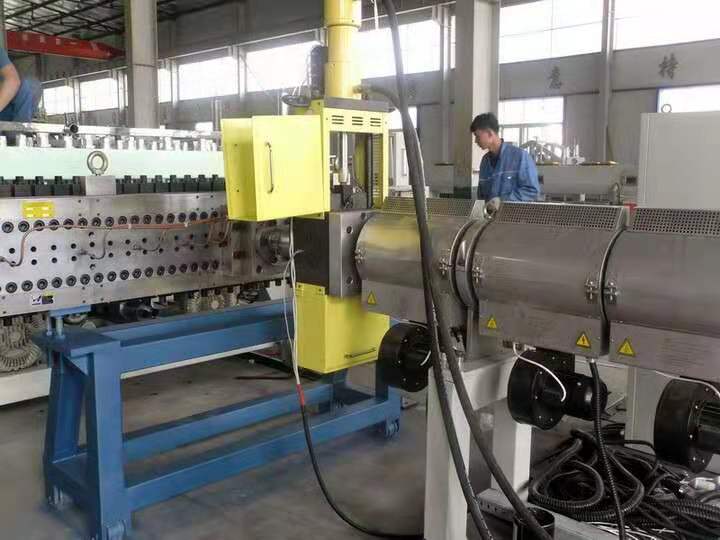

Extruder: The screw's special exhaust design and advanced PLC temperature control system ensure good plasticization of the plastic and high output and stable extrusion.
Screen changer: It replaces the hydraulic quick screen changer to make the screen change process fast and effective; the double station and special sealing structure ensure the stable operation of the screen changer
Mould: The mould is made of high-quality alloy steel with a highly movable throttling device to make the distribution pressure of the material flow in the die uniform and consistent; the differential adjustment of the upper and lower die ensures the uniformity of the upper and lower wall thickness.
Vacuum setting table: The setting system is equipped with a fast heat exchange refrigeration system, which is effectively interleaved with the vacuum system. The sequential distribution and alternating distribution ensure the setting accuracy. There are multiple three-point fixed cycle vacuum lines, each fixed cycle is equipped with a vacuum adjustment system and a vacuum display system, so that the vacuum degree on the surface of the sheet is uniform and stable.

Traction machine: The traction machine is distributed in the first and second groups. The first group of traction machines is of high power, large reduction ratio, and multi-roller type. It has excellent low-speed running performance and large traction, which can synchronously and uniformly remove the plate from the vacuum setting table. Pull out. The second group of tractors is used for stress relief. Equipped with trimming device to ensure the effective width of the board and the edge quality of the board.
