TPE embossed/mirror film glove whole production line

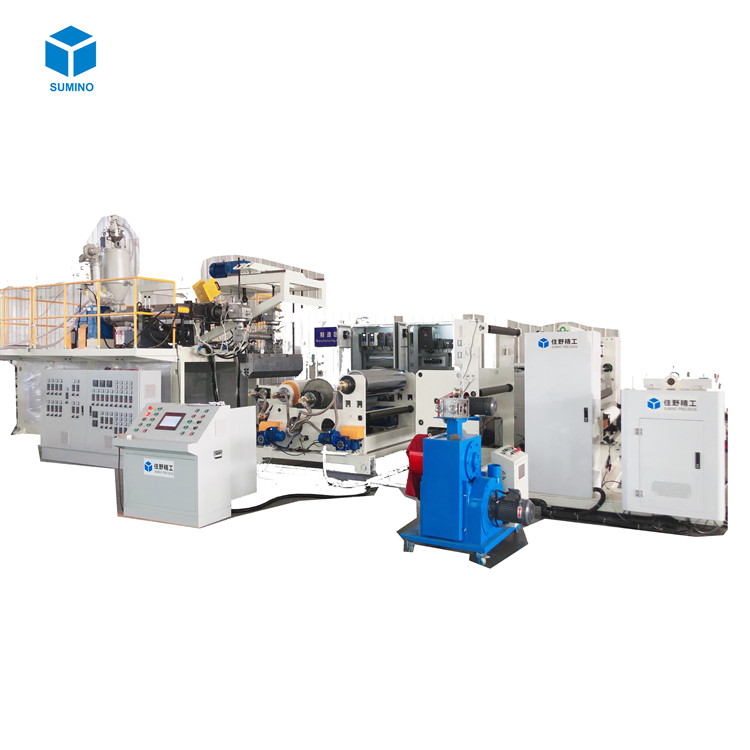

The first step is making film-Sumino film casting machine
Double extruder casting film making machine, double/3 layers casting film making machine
Model: |
1000mm-SJ¦Õ80mm-SJ¦Õ60mm(custom made) |
Product structure: |
1/2/3 layers structure A,AB,ABA |
Aspect ratio: |
30:1 |
Product thickness: |
0.05-0.10mm |
Final product width: |
custom made |
Adapt to materials: |
EVA TPE POE TPU PP PE PA and so on |
Maximum extrusion volume: |
200Kg/h |
Installation capacity: |
150KW |
Production energy consumption: |
80KW/h |
Machine weight: |
About 10 tons |
Rewinding load bearing design: |
500Kg |
Maximum mechanical line speed: |
5-60m/min |
The second step is glove shape machine
Performance: Making disposable gloves.
1. The whole machine adopts microcomputer control, Jinbao motor tow materials (optionalservo motor control system).2. Arbitrary fixed length, step length photoelectric tracking, accurate and stable, automaticshutdown when label is lost, and photoelectric control of feeding.3. Automatic counting and counting alarm can be set.4. The automatic constant temperature makes the sealing of the bag tight and smooth.Main technical parameters and configuration:1. Product width: 240-300mm2. Product length: 200-350mm3. Double cutting speed: 50-400pcs/min4. Product thickness: 0.008-0.02mm5. Maximum unwinding diameter: ¦µ600mm6. Power: 4.8kw7. Machine weight: 1000kg8. Dimensions: 3000¡Á1050¡Á1650mm
