Key Parts of PP PC PE flute board machine
2. Extrusion Die
High quality alloy extrusion die lip and choker bar provides uniform pressure drop from die inlet to die lip. Precisely machined die assures good quality of finished extruded sheet.
3. Vacuum Calibration Table
The thermal convection system of the calibration table features an intersection arrangement which ensures the hot PC resin flow is effectively cooled and the final extrudate achieves the desired shape and accurate dimensions. As far as the shape forming process is concerned, our multiwall sheet extrusion machinery allows rapid shape formation through sizing and cooling without the need of cold water. It helps save energy and improves efficiency.
4. Dry Vacuum Calibrator
The vacuum calibrator consists of 2 independent sub-systems, which are equipped with many close-loop vacuum channels.

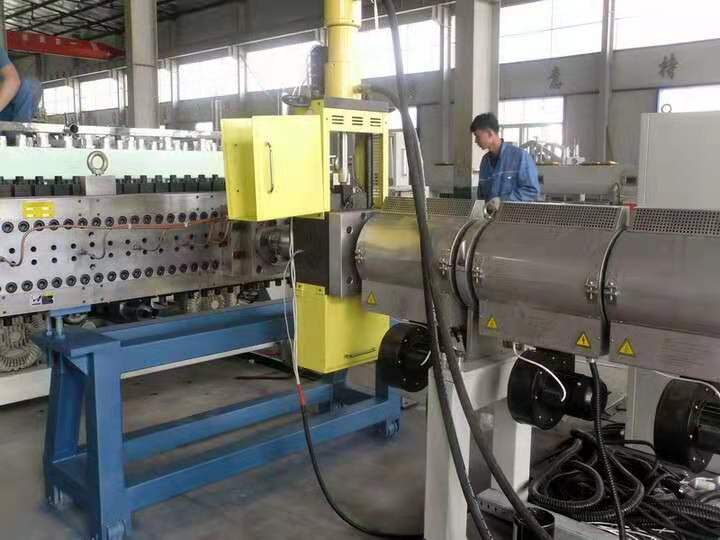

1. Extruder
Specially designed extruder screw and advanced temperature control system retain the plastic properties of the polycarbonate resin while ensuring extrusion efficiency. High energy efficiency is a major benefit of this PC sheet extruder. The extruder motor consumes 20% less power than an equivalent motor made by our competitors.2. Extrusion Die
High quality alloy extrusion die lip and choker bar provides uniform pressure drop from die inlet to die lip. Precisely machined die assures good quality of finished extruded sheet.
3. Vacuum Calibration Table
The thermal convection system of the calibration table features an intersection arrangement which ensures the hot PC resin flow is effectively cooled and the final extrudate achieves the desired shape and accurate dimensions. As far as the shape forming process is concerned, our multiwall sheet extrusion machinery allows rapid shape formation through sizing and cooling without the need of cold water. It helps save energy and improves efficiency.
4. Dry Vacuum Calibrator
The vacuum calibrator consists of 2 independent sub-systems, which are equipped with many close-loop vacuum channels.
5. Electrical Control System
Programmable logic control ensures precise extrusion process parameters and optimized operation features.
Benefits of PP PC PE flute board machine
1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4.Excellent Adaptability to different raw material and reach over 30% production cost reduction.
5. Size and shape diversity of finished products
Specifications of PP PC PE flute board machine
1.Fnished board thickness:2-6 6-12 12-18mm(with the same die for the thickness range)
2.Fnished width:1550-2550mm (1400,1800,2300,2700)
3.Output: 400kg/h
4.Line speed:1-10m/min
Product Application

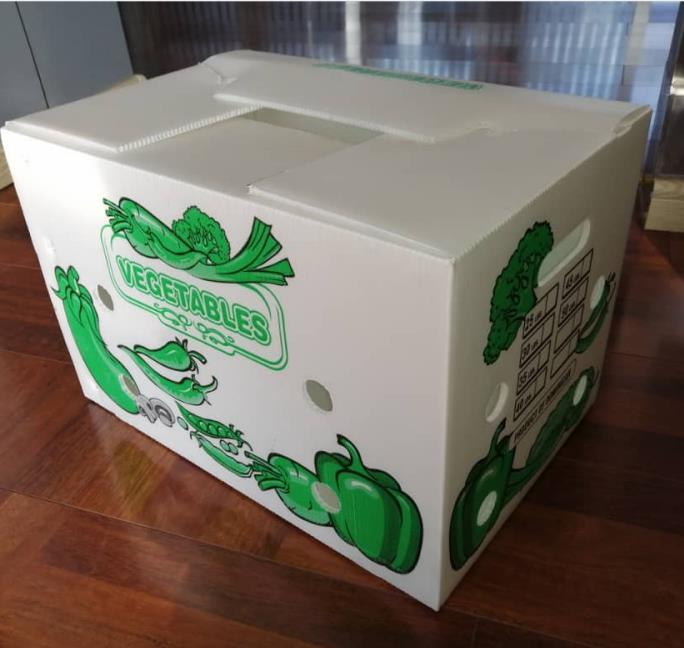

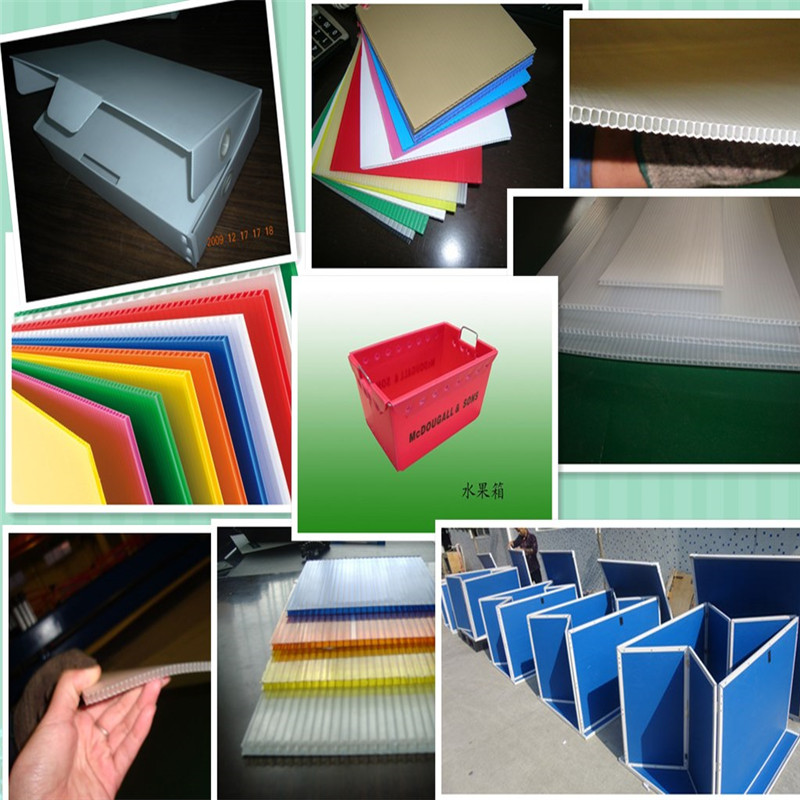

Plastic hollow board, Plastic fluted sheet, Antistatic plastic corrugated sheet, Plastic hollow sheet for electrics bottom protection, PP hollow sheet clapboard, PE hollow board, Plastic advertising display board, Plastic corrugated sheet for bottleslayer pallet, PP coroplast sheet, PP carton plast sheet, PP correx sheet, Edge sealing PP corrugated board, PP turnover container box for packaging, PP corrugated packaging box for vegetable export, PP turnover packaging box for asparagus, PP collapsible packaging box for grape, Plastic fire-retarding packaging box, PP packaging box for pesticide, PP hollow sheet backboard for refrigerator and other PP hollow sheet products.
