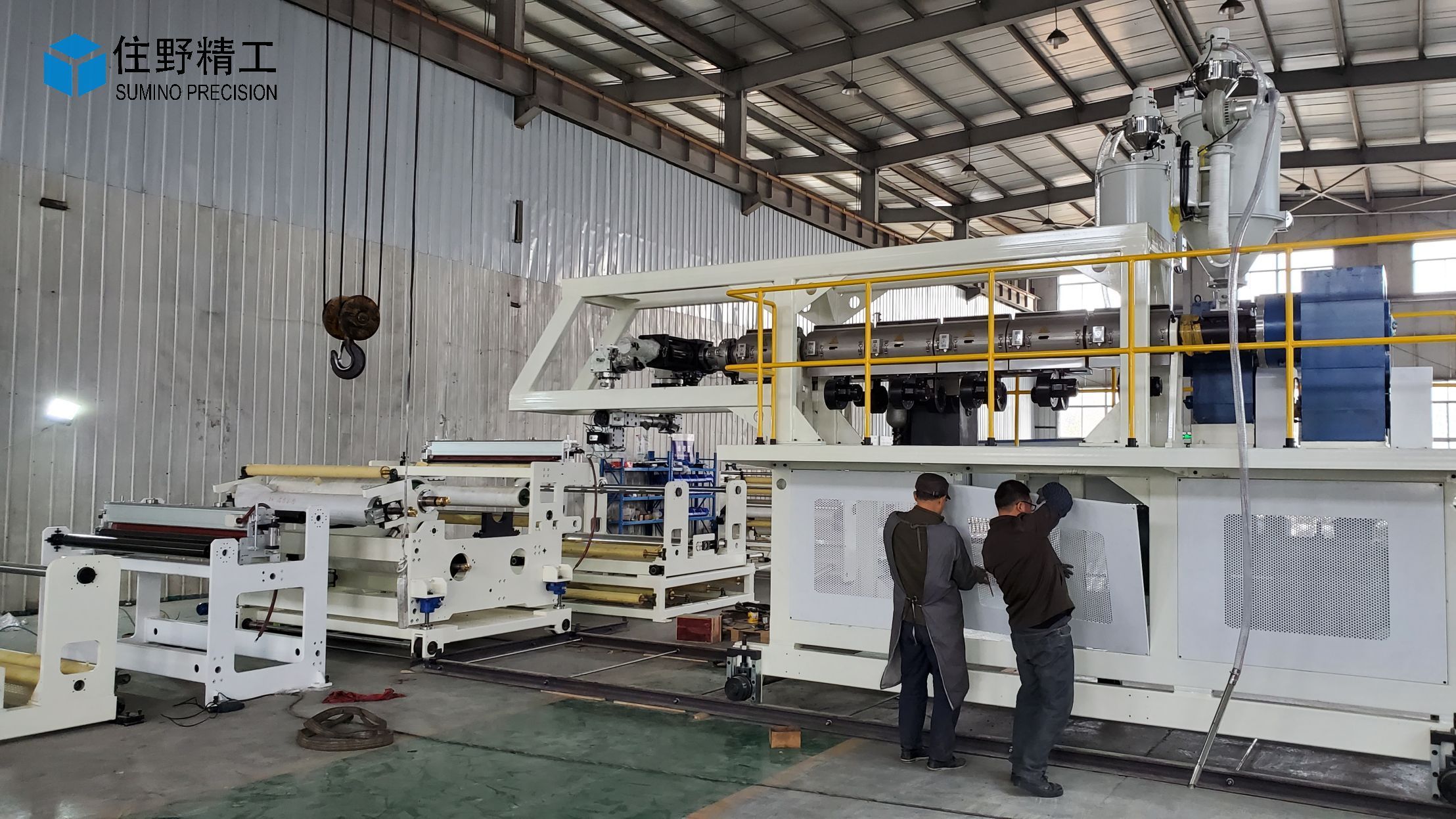

PE/PP Coating and Laminating Machine for Non-Woven
PLANT CAPABILITIES:
- Laminating Type : Single/ Sandwich
- Lamination Resin : LDPE /PP / Biodegradable resin (PLA)
- Finish width : 900 mm to 1850 mm or custom
- Laminating Weight : 10 gsm to 60 gsm or more
- Laminating Substrates: Paper & Paper Board (25 gsm to 500 gsm), PE/ PET/ PP / PVC / Met PET films, Al. foil, Woven, Nonwoven as well as glass fibre fabrics, any material scrim etc.
Main Parts Introduction
•PLC man-machine interface centralized control, integrated design of machine, electricity and gas.
•High-precision boundless imported original die head
•High-speed and high-efficiency mixing device can be equipped with automatic winding and unwinding, non-stop roll change, fast screen change, corona machine, and other auxiliary devices according to customer needs. The machine can be customized according to customer needs.
EXTRUSION COATING & LAMINATION
Plastic Extrusion is a industrial process that enables to produce a melt of thermoplastic polymer material. When this poly melt is coated as a thin layer onto a moving substrate as a functional coating, the process is known as ¡°Extrusion Coating¡±.
When poly melt in above process is used as a ¡°glue¡± to combine two substrates, it is known as ¡°Extrusion Lamination¡±.
Extrusion Coating/Lamination is a highly versatile process allowing combination of various substrates (i.e. Paper, Al. foil, Plastic films, Non wovens, etc.) of different thickness to form a composite structure with high level of quality combining individual specific characteristics of each substrate and the thermoplastic material used.
LDPE is commonly used to increase water vapor/ moisture barrier of a laminate apart from imparting heat sealing ability.
Polyethylene surface also offers optimal protection against dirt and other hygiene hazards.
