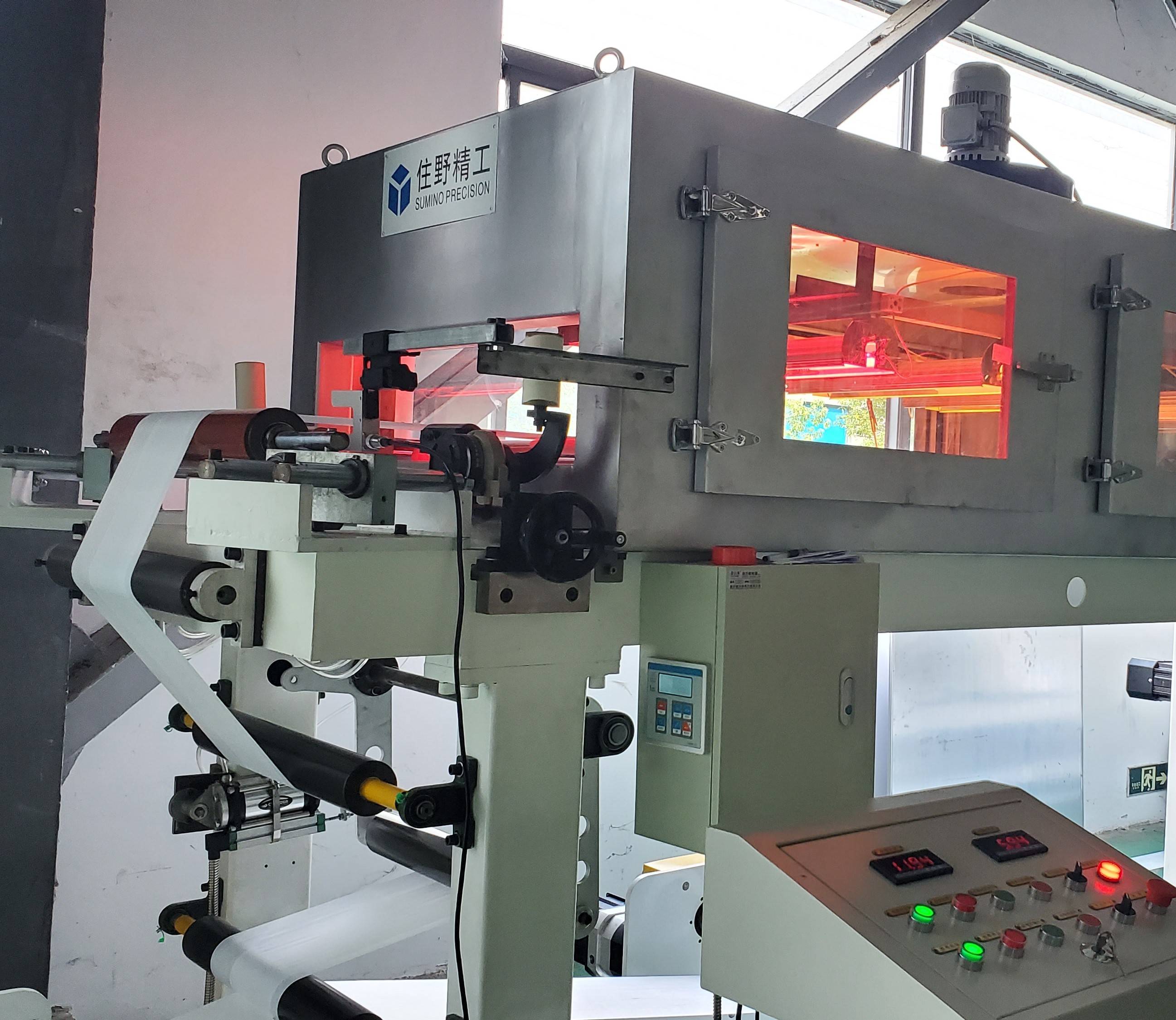

Sumino Water base adhesive film Coating machine roll coater machine

We have been successfully manufacturing, exporting & supplying all types of Coating Machine. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing. For Coating Machine, we have processed all types of material like Polyester, BOPP, LD, Aluminum Foil, PVC, Paper, Film, etc. We have more than 75 installations of Coating Machine in India and overseas like Saudi Arabia, UAE, Dubai, Sharjah, South Africa, Nigeria, Ghana, Congo, Kenya, Zambia, Sri Lanka, Bangladesh, Malaysia, Pakistan, Nepal, Russia, Thailand, Indonesia, Brazil, Colombia, Venezuela, Argentina, Mexico, Canada, etc.

Features

* Precisely engineered

* Easy maintenance

* Long functional life



Technical Specifications:

* Web Width: 200 to 1300 mm.

 * Coating Facility: Gravure & 3 Roll System.

 * Speed : Solvent base adhesive speed 80 to 100 mtr/minute.

 *Sumino Coating for foil speed 4 Gsm 40 to 80 mtr/minute and 6Gsm 40 50 mtr/minute.

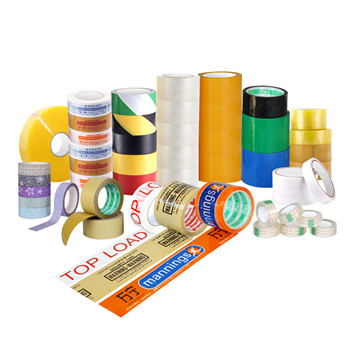

 * Water base adhesive coating speed 35 mtr/minute Specially designed as a multipurpose plant, these machines possess facilities for polyester lamination silicon coating, adhesive coating for tapes & stickers and heat salable coating on blister.

  * Fully pneumatically lifting tunnels and impression rollers

 * Automatic balanced all steel rollers.

 * Comfortable exhaust system for solvent fumes.

 * Sound & Uniform heating system at high temperature.

 * Air nozzles distribute uniform not air across the wash width and are placed against idle rollers for proper web support.

 * Sumino tunnel is distributed in 8 Heating zones & 2 cooling zones having individual air blower for better temperature control.

Coating Unit:

* Designed for hollow & integrated shaft type cylinders * Special bearing housing are provided to support the cylinder shaft locked mechanically on the unit side frame during operation. * Thickness of glue coating can be set using the Anilox roller and doctor blade mesh. * Three side view open to see the web from three different directions while in operation.
